Main products: ball valves, gate valves, globe valves, check valves, filters, drain valves, butterfly valves, and engineering supporting valves
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Working temperature: -196 ℃~+550 ℃
Product materials: carbon steel, stainless steel, alloy steel, duplex steel, and other special materials, etc
Drive modes: manual, electric, pneumatic, gear driven, hydraulic, etc
Manufacturing standards: GB, ANSI, JIS, API, EN, BS, DIN, ASME, etc
Product Overview:
A ball valve is a type of valve that controls fluid flow by rotating the valve core (ball). Its core structure is a sphere with a circular through-hole, which rotates around the axis perpendicular to the main pipeline axis to achieve the functions of fully opening (through-hole, aligned with the pipeline), fully closing (sphere cutting off the pipeline), or adjusting the flow rate (partially open). Ball valves have the characteristics of simple structure, reliable sealing, and low flow resistance, and are widely used in industrial fields such as petroleum, chemical, natural gas, water treatment, and civil pipeline systems.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Product Overview:
A filter is an indispensable device on the pipeline for conveying media, usually installed at the inlet of pressure reducing valves, relief valves, constant water level valves, and other equipment such as square filters. The filter consists of a cylinder, a stainless steel filter screen, a discharge part, a transmission device, and an electrical control part. After the water to be treated passes through the filter cartridge of the filter screen, its impurities are blocked. When cleaning is needed, simply remove the detachable filter cartridge, process it, and reinstall it. Therefore, it is extremely convenient to use and maintain.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Product Overview:
A gate valve is a type of valve that uses a gate (opening and closing member) to vertically lift and lower along the centerline of a passage to control the opening and closing of a pipeline. The sealing surface between the gate and the valve seat is adhered or separated to achieve the opening or closing of the fluid. Its sealing performance depends on the coordination between the gate and valve seat, and is widely used in industrial fields such as water supply and drainage, petrochemicals, power, metallurgy, etc.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Product Overview:
A globe valve is a type of valve that controls fluid flow by lifting and lowering along the centerline of the valve seat through a valve opening and closing component. Its working principle is to use the sealing surface of the valve seat and the valve seat to adhere or separate, to achieve load interruption, regulation or throttling of the medium in the pipeline. Globe valves have the characteristics of simple structure, reliable sealing, and good regulating performance, and are widely used in pipeline systems that require precise flow control or frequent opening and closing.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Product Overview:
A check valve refers to a type of valve whose opening and closing components are circular valve rows that act by their own weight and medium pressure to block the backflow of the medium. It belongs to the category of automatic valves, also known as check valves, one-way valves, return valves or isolation valves. The valve movement modes are divided into lift and swing types. Check valves are widely used in scenarios where backflow prevention is required, such as water pump outlets, steam pipelines, and compressor systems.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Product Overview:

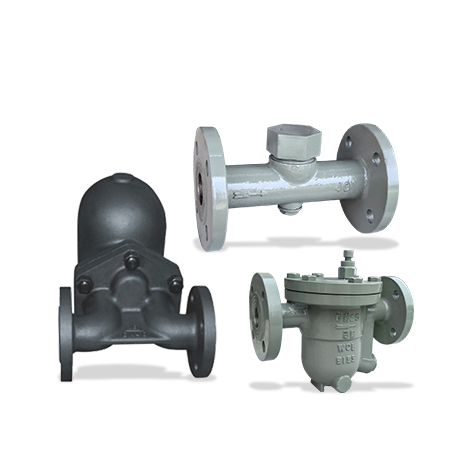

A steam trap, also known as an automatic drain or condensate drain, is used in both steam and gas systems. The steam trap is installed at the end of the steam heated pipeline, and its function is to continuously discharge the condensed water in the steam heated pipeline to the outside of the pipeline. Most steam traps can automatically recognize steam and water (excluding thermal static type), thus achieving the purpose of automatic blocking and drainage. Hydrophobes are widely used in industries such as petrochemicals, food and pharmaceuticals, and power plants, playing a significant role in energy conservation and emission reduction.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
Product Overview:

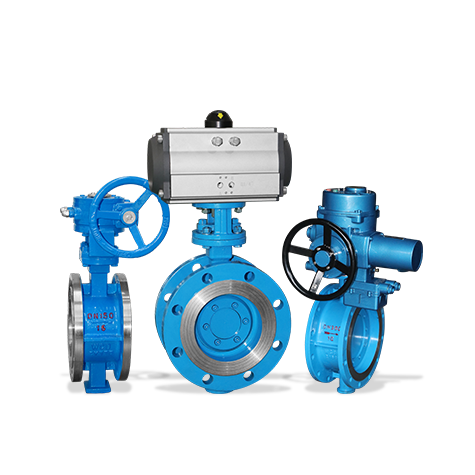

Butterfly valve, also known as flap valve, is a type of regulating valve with a simple structure that can be used for on/off control of low-pressure pipeline media. Butterfly valve refers to a valve whose closing element (valve disc or butterfly plate) is a disc that rotates around the valve axis to achieve opening and closing. Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metals, and radioactive media. It mainly plays a role in cutting off and throttling on pipelines. The butterfly valve opening and closing component is a disc-shaped butterfly plate that rotates around its own axis inside the valve body to achieve the purpose of opening, closing, or adjusting.
Product caliber: DN15mm-DN1000mm
Working pressure: 1.0MPa-6.4MPa
